Nano-Micelle of Moringa Oleifera Seed Oil Triggers Mitochondrial Cancer Cell Apoptosis


Moringa oleifera, which is originally located in Asiathen spread in many parts of Africa, is belongs to family Moringaceae (Anwar et al., 2007). This family contains around 13 species conveyed from tropical to subtropical districts and going in size from little herbs to huge trees(Janick and Paull, 2008). The most commonly known species globally is the Moringa oleifera Lam., otherwise called horseradish or drumstick tree (Awodele et al.,2012). This species is the most broadly developed of the Moringaceae and was used by the old Egyptians, Romans,and Greeks in botanical medicine. Customarily, all partsand products of Moringa oleifera are palatable, and have for quite some time been expended as vegetable and used to tackle numerous ailments, for example, cancers and liver disorders (Abd-Rabou, 2016; Rao and Mishra, 1998).

Moringa oleifera seeds contain 33-41% w/w vegetable oil (Rashid et al., 2008). This oil contains every single unsaturated fat contained in olive oil, aside from linolieic and was medicinally utilized due to its worthy substitute (Lalas and Tsaknis, 2002). Moreover, it is broadly utilized as a part of cooking, lighting, hairdressing; furthermore, cleanser and scent commercial enterprises (Ghazali and Mohammed, 2011). Intriguingly, it has been found to show antimicrobial and anticancer properties (Siddhuraju and Becker, 2003; Chuang et al., 2007).

Mechanistically wise, Moringa seeds contain a dimeric cationic proteins (13 kDa) naturally have coagulant and antimicrobial properties, as well as generally is used for decontamination and treatment of high turbid water (Anwar et al., 2007). The seeds of Moringa oleifera contain 19 to 47% substantial oils (Ahmad et al., 1989), which present a marvelous sort of nutritious supplements. The fat from the seeds is not only utilized as vegetable oil, for cooking which have imperviousness to oxidative debasement, but also it has a defensive activity against poisonous impacts (Sanchez Machado et al., 2010).

Malignancy is a standout amongst the most unsafe ailments among nations. In 2012, 14.1 million growth cases have been accounted around the world, from which 52.5% men and 45.4% ladies (Sultana et al., 2014). These percentages are expected to be steadily increased by around 70% in 2035 (Ferlay et al., 2014). Colon growth, the third most regular tumor around the world, represents the fourth happening malignancy among all age bunches (Al-Kuraya et al., 2006). Liver malignancy is considered as the third reason for disease mortality around the world (Farooq et al., 2013). Among women, the most common site diagnosed for cancer was breast (De Martel et al., 2012; WHO, 2015).

However, chemotherapy regimens are currently available for cancer treatments (Huang et al., 2014), there are many physiological and psychological burdens. Thus, the new trend of utilizing phytochemical mixes has been an expanding pattern to use of conventional home grown medications as potential anticancer candidates (Abd-Rabou et al., 2012; Ahmed et al., 2015; Awodele et al., 2012). To increase the targetability of such phytochemical products, nanotechnology with potential applications in health and drug delivery for cancer therapy played a crucial role to solve this obstacle (Abd-Rabou, 2016; Park et al., 2008).

However, common cancer prevention agents; vitamin C, tocopherols, flavonoids, and other phenolic mixes are not introduced in certain Moringa species (Laandrault et al., 2001), Moringa oleifera is one such plant that has been recognized to contain normal cell reinforcements (Iqbal and Bhanger, 2006; Siddhuraju and Becker, 2003). Eventually, Moringa oleifera has anticancer properties and antihepatotoxic (Asare et al., 2012). Besides, its cancer prevention agent action in vivo and in vitro, basically because of the vicinity of high measures of polyphenols (Fahey, 2005; Tatiana et al., 2013). Therefore, this study is aimed at exploring the mitochondrial apoptosis-mediating cytotoxic impact of nano-micelle of Moringa oleifera seed oil on different cancer cell lines in vitro.

Materials and Methods


The seed oil of Moringa oleifera was cordially obtained from the Egyptian Scientific Society of Moringa (ESSM), National Research Center, Dokki, Cairo, Egypt. Tween80, ethanol, dimethyl sulfoxide (DMSO), 3-(4,5 dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) were purchased from (Sigma-Aldrich, USA). Dulbecco’s modified Eagle’s medium (DMEM), Roswell Park Memorial Institute (RPMI-1640) medium, and Hanks’ Modified Eagle (Hanks’ MEM) medium were supported by (Lonza, USA). Fetal bovine serum (FBS), penicillin/streptomycin (P/S), phosphate buffered saline (PBS), L-glutamine, trypsin/EDTA, Annexin V were obtained from (Life Technologies, USA).

Preparation of Moringa oil-loaded nano-micelle (MOn)

Moringa oleifera seed oil in water (MO/W) liquid microemulsion was prepared by dissolving tween80 (surfactant) in ethanol (co surfactant) at 2 : 1 weight ratio, respectively, followed by equilibration and titration into water. Therefore, the surfactant and co-surfactant were dissolved in water to make 5 wt% surfactant solution then 1 wt% MO was titrated into the water/surfactant solution followed by equilibration at room temperature till it gave a transparent clear nano-particulate until the system was transparent under vortexing. The monophasic nano-formulation was formed spontaneously using microemulsion method at room temperature according to (Kumar et al., 2011).

Malvern Zeta Sizer analysis

Particle size and zeta potential of the MOn was determined by photon correlation spectroscopy (PCS) using a Zeta Sizer (Nano ZS, Malvern Instruments, UK). For size measurements, 1 ml of the nano-micelle was measured for a minimum of 120 s. Similarly for zeta potential measurements, the samples were placed in an electrophoretic cell. Nano-micelle was maintained at a constant temperature of 25 °C.

Cell culture

Human breast cancer MCF7, colorectal cancer HCT 116 and Caco-2, hepatoma HepG2, and normal kidney BHK-21 cell lines were purchased from American Type Culture Collection (ATCC, USA) and cultured using Dulbecco’s modified Eagle’s medium (DMEM), Roswell Park Memorial Institute (RPMI-1640) medium, and Hanks’ Modified Eagle (Hanks’ MEM) medium, supplemented with 10% fetal bovine serum (FBS), 1% penicillin/streptomycin (P/S), and 1% L-glutamine obtained from Life Technologies, Gibco (Grand Island, NY). Cells were cultured in 5% CO2 at 37°C and then treated with 0.25% (w/v) trypsin/EDTA to affect cell release from the culture flask. After washing the cells with phosphate buffered saline (PBS), cells were suspended in the media.

MTT-based mitochondrial function

The anti-cancer activities and the mitochondrial-based cytotoxicity (Van Meerloo et al., 2011) of Moringa seed oil (MO) and its nano-micelle (MOn) were evaluated by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay using HepG2, MCF7, HCT 116, Caco-2, and BHK-21 cells. The principle of the MTT test is based on the measurement of the viability of cells via metabolic activity. Yellow water-soluble MTT is metabolically reduced in viable cells to a blue-violet insoluble formazan. The number of viable cells correlates to the color intensity determined by photometric measurements after dissolving the formazan in dimethyl sulfoxide (DMSO). Briefly, the cells were cultured in 96-well plates at a density of 1×104 cells/well. MO and MOn with different concentrations (0, 20, 40, 60, 80, 100 µg/mL) were added in the media over those cells. After a day incubation, MTT (Sigma) dissolved in PBS was added to each well at a final concentration of 5 mg/ml, and the samples were incubated at 37°C for 4 h. Water-insoluble dark blue formazan crystals that formed during MTT cleavage in actively metabolizing cells were then dissolved in DMSO. Absorbance was measured at 455 nm, using a microplate reader (Model 500; BIORed Instrument Inc., USA). The cell viability (%) was calculated and compared with the controls according to this equation.

Flow cytometric analysis

We selected HCT 116 cell line to study the underlying apoptotic mechanism, because we found that MOn had the highest cytotoxic effect upon this cancer type, scoring the lowest half maximal inhibitory concentration of cell growth (IC50= 49.1µg/mL). Accordingly, we used Annexin V to stain flipped phospholipids on the HCT 116 cell membranes. This approach was used in determination of apoptosis after treatment with the MO and MOn at 24 h of drug incubation. Annexin V kit was purchased from (ThermoFisher Scientific). We used the IC50s of the MO and MOn to treat HCT 116 cells, then apoptosis was measured and analyzed using flow cytometer (Beckman Coulter instrument, USA).

Statistical analysis

The results were presented as the mean of three independent experiments and the standard error (SE). One way analysis of variance (ANOVA) was used for the analysis of the test results at the significance level of p-value <0.05 (OriginPro 8 software). The IC50 was obtained using polynomial concentration–response curve fitting models (OriginPro 8 software).



Nano-micelle characterization

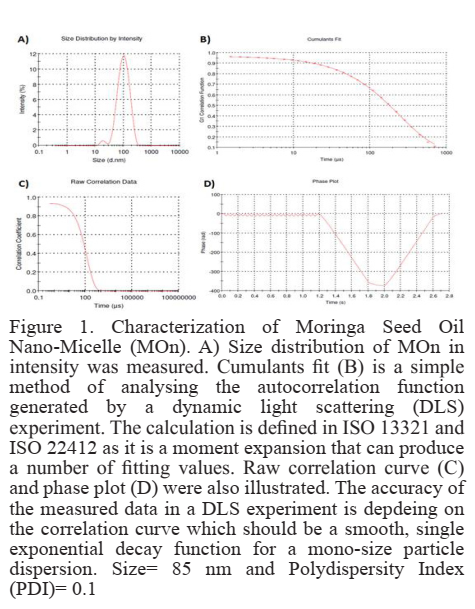

It was observed that Moringa seed oil nano-micelle (MOn) has nano-size (85 nm; Figure 1a), polydispersity
index (PDI= 0.1), nano-stability with accurate cumulants fit, raw correlation data, and phase plot as illustrated in
(Figures 1b-d).

MOn induces Caco-2 mitochondrial cell death

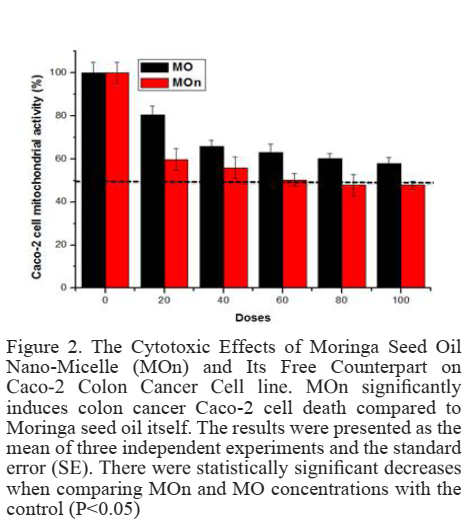

MOn and its free counterpart (MO) have been applied on Caco-2 cell line at different concentrations (0, 20, 40, 60, 80, 100 µg/mL) using MTT-based mitochondrial assay. The cytotoxicities of MOn were able to kill about 50% of the colon cancerous Caco-2 cells at 60 up to 100 µg/mL through mitochondrial dysfunction compared to its free counterpart which kill just around 40% of the cancer cells at the highest dosage used (100 µg/mL) as illustrated in (Figure 2).

MOn remarkably induces HCT 116 mitochondrial apoptosis, sparing normal cells with minimal effect

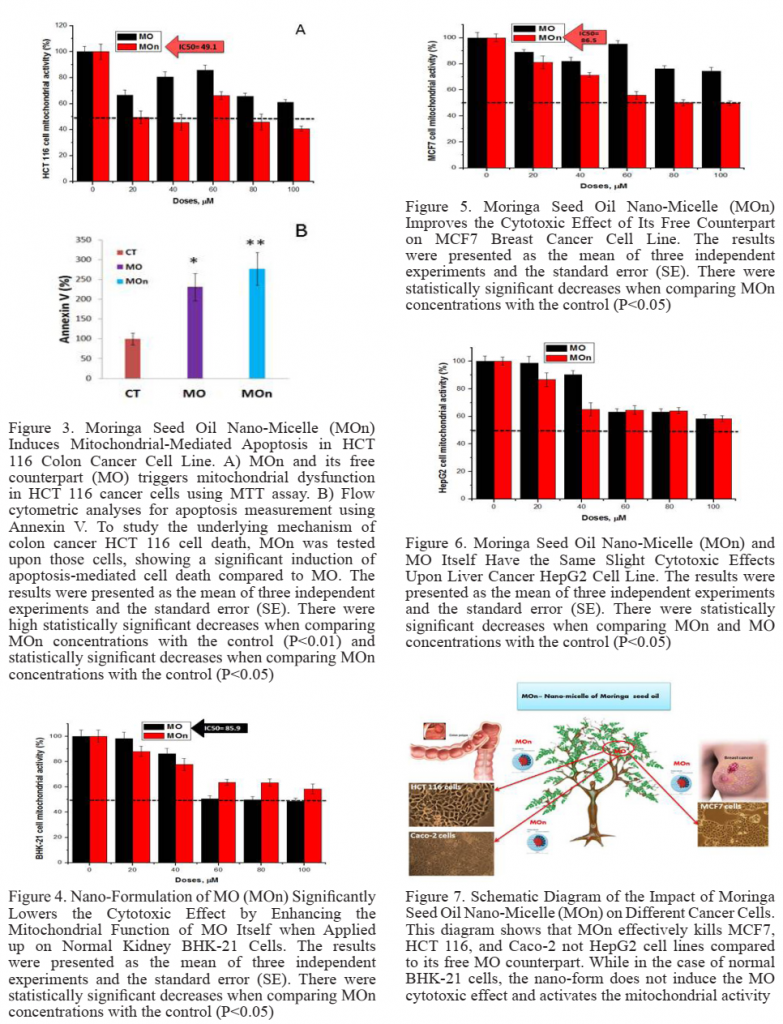

Figure 3 shows that MOn and its free counterpart (MO) triggers mitochondrial dysfunction in colorectal HCT 116 cancer cells using MTT assay. MOn and its free counterpart (MO) have been applied on HCT 116 cell line at different concentrations (0, 20, 40, 60, 80, 100 µg/mL) using MTT-based mitochondrial assay. The cytotoxicities of MOn were able to reach the half maximal inhibitory concentration of cell growth (IC50) at 49.1 µg/mL, while there is undetectable IC50 in case of its free counterpart which kills less than 40% of the colon cancer cells at the highest dosage used (100 µg/ mL) as illustrated in (Figure 3a). To study the underlying machinery of colon cancer HCT 116 cell death, MOn was tested up on HCT 116 cells using flow cytometry system. Annexin V-based apoptosis in HCT 116 cell line was tested up on treatment with 100 µg/mL MOn and MO against untreated control cells after 24 h incubation as illustrated in (Figure 3b). The underlying mechanism of MOn and MO are mainly dependent on triggering mitochondrial apoptosis (608.1% and 567.5%, respectively) compared to control (100%). Therefore, the flow cytometric analyses for apoptosis measurement using Annexin V showed a significant induction of apoptosis-mediated cell death by MO, especially the MOn compared to the untreated cells. On the other side, Figure 4 shows that MOn significantly lowers the cytotoxic effect by enhancing the mitochondrial function of MO itself when applied up on normal kidney BHK-21 cells, where there was an IC50= 85.9 µg/mL up on MO treatment and an undetectable IC50 up on MOn therapy, suggesting an improvement in the MO targetability after formulating it in a nano-micelle.

MOn induce MCF7 not HepG2 cell death

Figs. 5 and 6 show the cytotoxic effects of MOn and MO on breast MCF7 and liver HepG2 cancer cell lines, respectively. It was reported that MOn had an IC50= 86.5 µg/mL compared to MO with an undetectable IC50 with over 70% cell viability at 100 µg/mL in case of MCF7 cells, while there were no IC50 detected in case of HepG2 cells up on both MOn and Mo treatments, reaching approximately 60% cell viabilities at 100 µg/mL.

In the present study, we found that nano-micelle of Moringa oleifera seed oil (MOn) can provide a novel therapeutic strategy for colorectal cancers (Caco-2 and HCT 116 cell lines) and breast cancer (MCF7 cell line) through mitochondrial-mediated apoptosis, while sparing normal BHK-21 cells and even liver cancer (HepG2 cell line) with minimal cytotoxic effect.

Normal restorative plants and their bioactive constituents have the pharmaceutical power to display their cytotoxic effects against malignant cells (Cragg and Newman, 2005). Moringa oleifera has been exceedingly used in medicine due to its nutritional advantages (Janick and Paull, 2008). In spite of the fact that Moringa oleifera has been generally explored for its anticancer feature, rare data can be found with respect to its cytotoxic action of its seed oil (MO) and no data regarding to its nano-composite (MOn).

We are supplier of moringa oil and moringa leaf powder from Indonesia – Nano-Micelle of Moringa Oleifera Seed Oil Triggers Mitochondrial Cancer Cell Apoptosis

In the current results on cancer HepG2, MCF7, HCT 116, and Caco-2 cell lines against normal kidney BHK-21 cell line, we not only applied the Moringa seed oil itself (MO) but also its nano-micelle (MOn). We observed that MOn induced colorectal cancer Caco-2 and HCT 116 cytotoxicity and cell death through mitochondrial dysfunction more powerful than its free counterpart (MO). On the other hand, MOn and MO remarkably induce HCT 116 mitochondrial apoptosis, while sparing normal BHK-21 cells with minimal effect. Some examinations came to support our results of Moringa oleifera seed oil (MO) by assessing the antiproliferative impact of MO on various cell lines including HeLa, HepG2, MCF7, Caco-2, and L929. They demonstrated that different doses of MO extraordinarily diminished the suitability of various cell lines relying up on the concentration of MO after 24 h of incubation. In addition, our set of data was supported by two other publications acquired some measurements of various convergences of MO on various cell lines, demonstrating that HeLa cells have been noticed to have the most noteworthy decline in their viability followed by MCF7, L929, and Caco-2 (Al-Oqail et al., 2013; Sharaf-Eldin et al., 2015). Intriguingly, our data showed that MOn was specific for breast cancer MCF7 cell death but not for hepatic cancer HepG2 cell death. On the contrary, HepG2 cells death was remarkably induced in previous studies (Al-Oqail et al., 2013; Sharaf-Eldin et al., 2015).

Mechanistically wise, the GC-MS investigation of the Moringa oleifera seed oil indicated that the most constituent was Naphthalene with approximately 35.65 %, which gives MO the capability to scavenge free radicals. Knowing that, 1.4 mg/ml MO is the best dose which shows the most scavengingforce of free radicals. This demonstrates that MO has a chelation property to provide a potential security against oxidative harm (Hussein et al., 2014).

Notwithstanding, Moringa seed yielded 42.23% oil content (Manzoor et al., 2007) which is impressively very higher than that reported for some normal seed oil crops; cotton (15.0–24.0%), soybean (17.0–21.0%), and somewhat practically identical with safflower (25.0-40.0%). Knowing that, the oils yielded from various Moringa genotypes in Egypt and other nations depend on developing conditions, topographical states of the areas, aging stage, collecting time of the seeds, and extraction techniques utilized (Pritchard, 1991). Consequently, this percentage of each yielded-oil reflects the anti-oxidant potential for scavenging free radicals.

We are supplier of moringa oil and moringa leaf powder from Indonesia – Nano-Micelle of Moringa Oleifera Seed Oil Triggers Mitochondrial Cancer Cell Apoptosis

On the other hand, the importance of unsaturated fat analogs present in Moringa oleifera against cancer has been sounded. Authors indicated that the oil acquired from Moringa oleifera seeds has dose dependent cytotoxic impacts, where it contains 49.1-50.9% unsaturated fats (Abdulkarim et al., 2005; Heo et al., 2014). Unsaturated fats have been accounted to show anticancer effect against numerous cancerous cells in vitro and in vivo cancer-induced models (Scheim, 2009). Mustafa et al., (2004) explored the anticancer potential of various unsaturated fat analogs, which showed cytotoxic impacts against some distinctive cancerous cell lines. Moreover, Ravichandran and Johnson (1999) proposed that the antitumor impact of the unsaturated fats in the Moringa seed oil is identified with the expanded lipid peroxidation, due to expanded creation of free radicals. The impact of various doses of seed oil on the morphology of cancer cell lines demonstrated a focus subordinate impact, where the cells began to lose their ordinary morphological structure with prompt cell separation and in turn programmed cell death. This evidence is in agreement with our observations suggested that MOn and its free counterpart (MO) triggers mitochondrial dysfunction in colorectal HCT 116 cancer cells and that apoptosis in those cells was elicited up on treatment with 100 µg/mL MOn and MO compared to untreated control cells after 24 h incubation. Thus, the underlying mechanism of MOn and MO are mainly dependent on triggering mitochondrial programed cell death; apoptosis, while sparing normal kidney BHK-21 cells with minimal effect. This discussion suggested an improvement in the MO targetability after formulating it in the nano-micelle (MOn).

Overall, nano-micelle of Moringa oleifera seed oil (MOn) can deliver a new therapeutic strategy for colorectal and breast cancers through mitochondrial-mediated apoptosis, while sparing normal BHK-21 cells with minimal cytotoxic effect. This will help us get closer to the day when cancers are no longer global health care obstacles.
